Table-top devices

Our table-top devices are small complete systems for laboratory use. They are portable, space-saving and versatile.

The devices are designed in accordance with laser class 1, which means that no further laser protection is required. The devices also have an adjustable Z-axis to optimally adjust the focus to any workpiece height.

The table-top units can be customized with a wide range of lasers and technical configurations to meet customer requirements.

Laser types	UV, GN, IR, FIR
Laser optics	Use of F-theta optics (also telecentric) for a consistently good processing image with sharp structures in the entire processing area.
Image recognition	Automated product detection, position correction, scaling, reporting and process monitoring
Distance measurement	For measuring the working distance of variable products
Turn-tilt device	Enables a part to be rotated and tilted

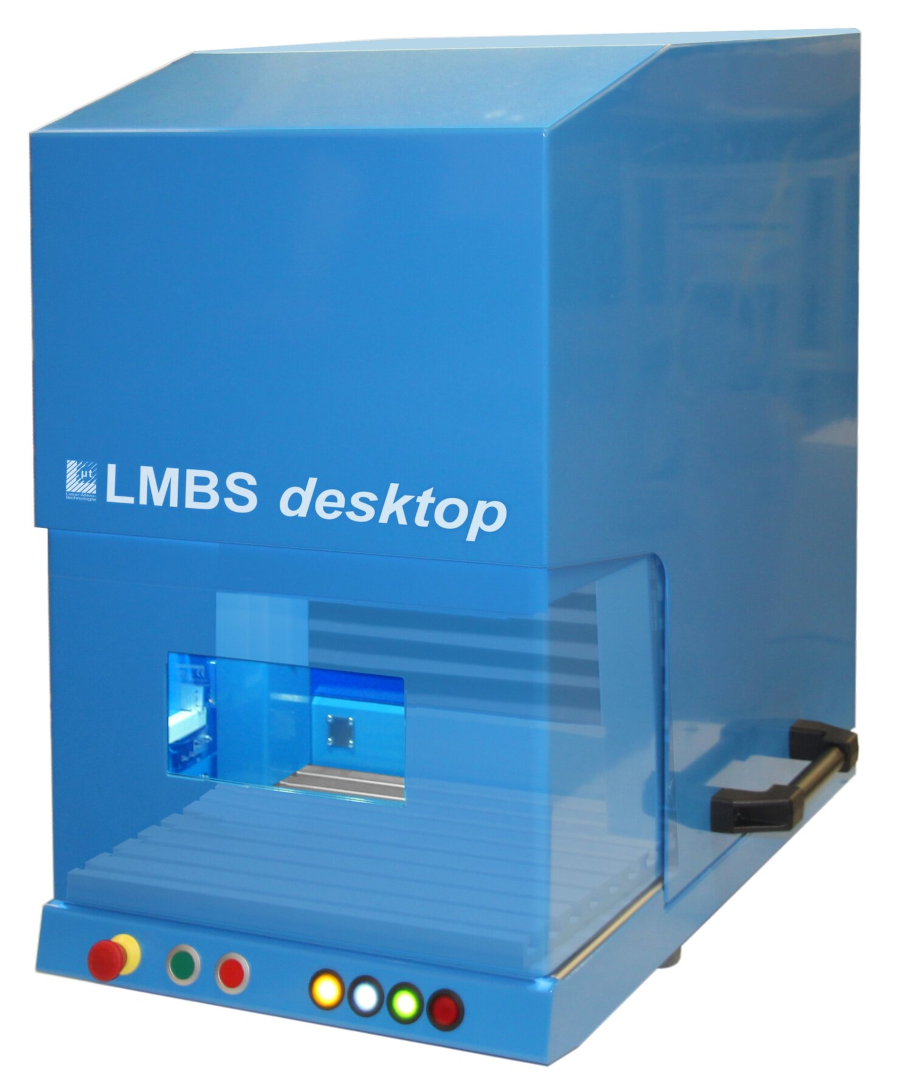

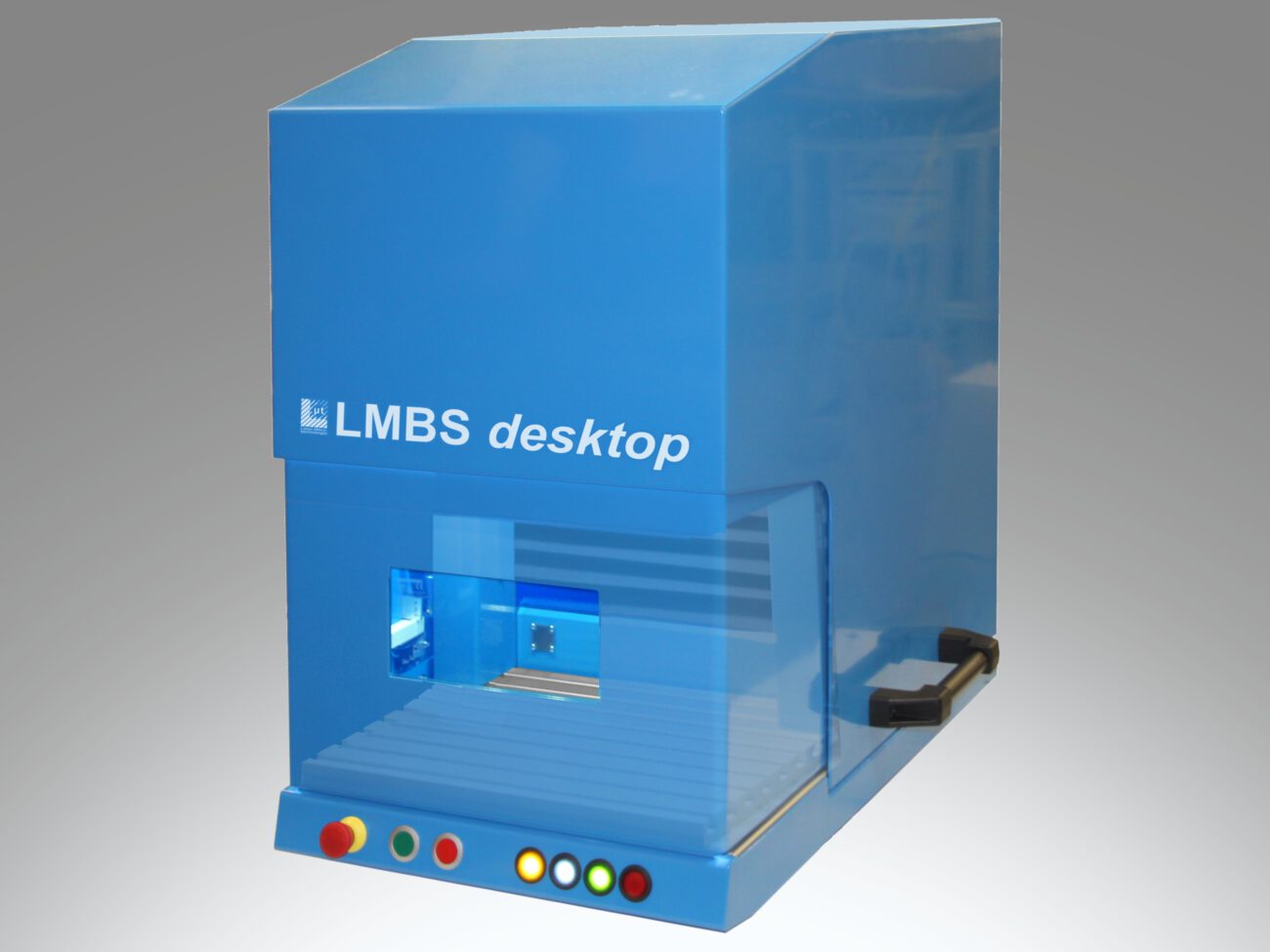

LMBS desktop

These devices are designed in accordance with laser class 1 with all safety precautions and enable all standard markings.

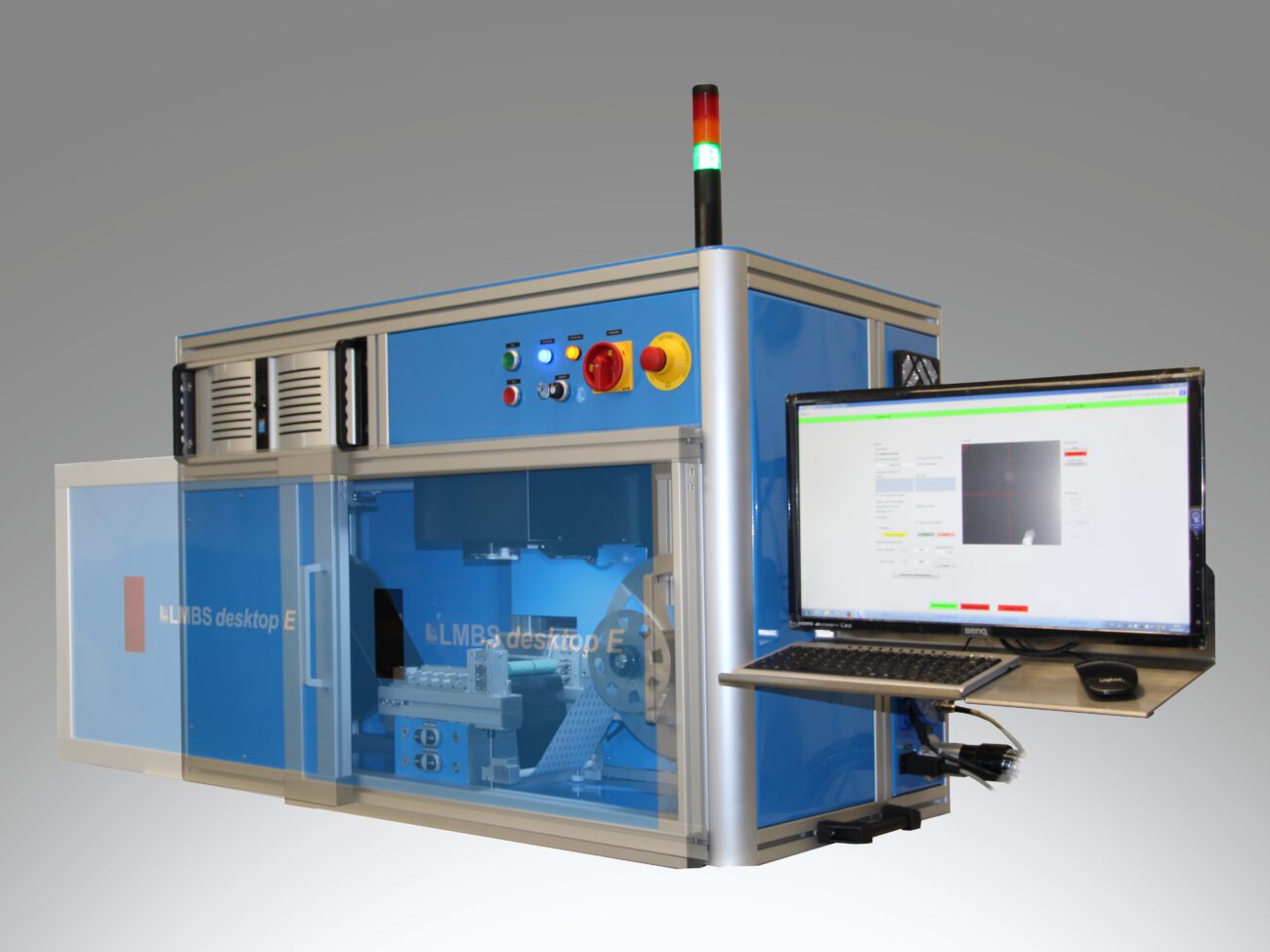

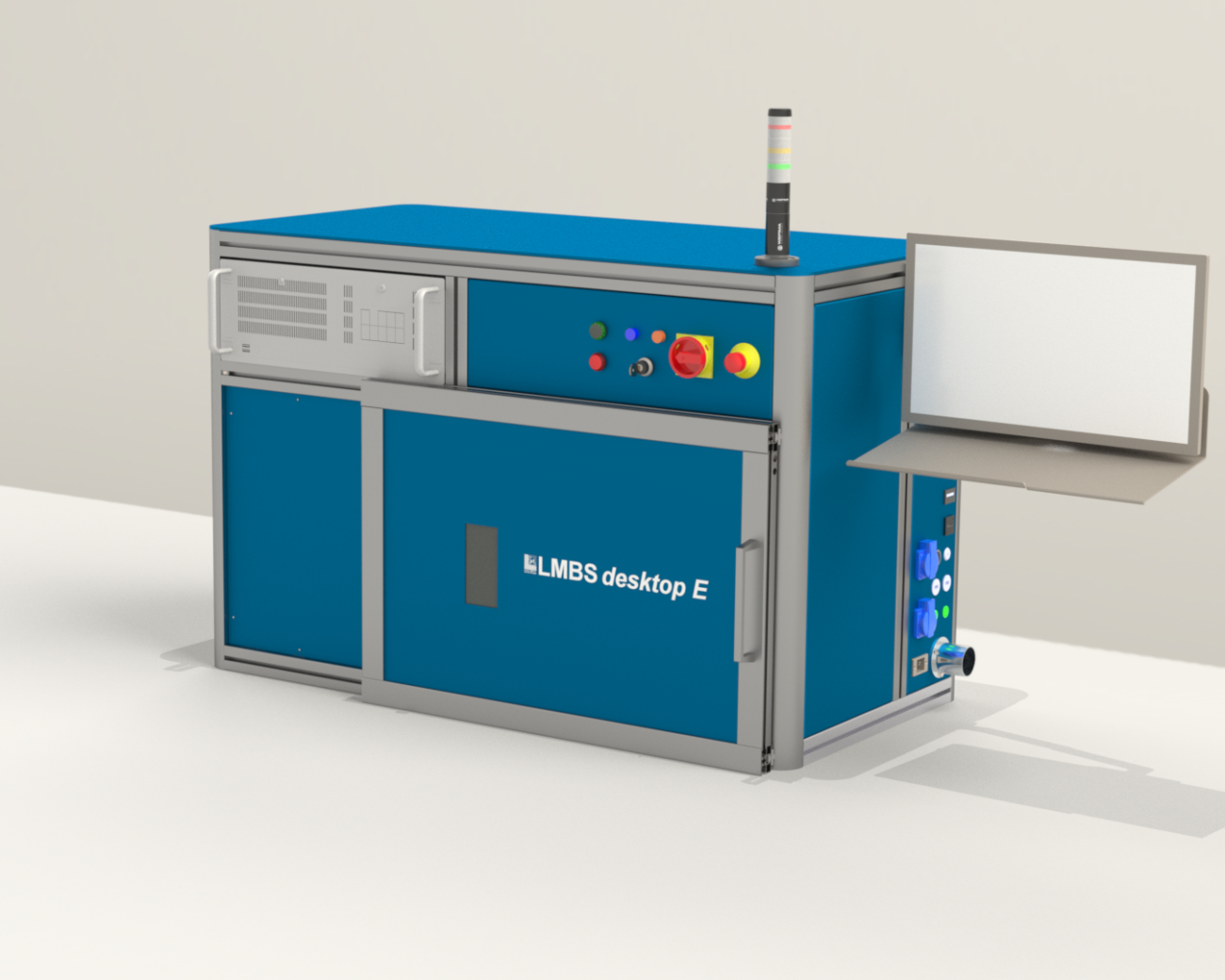

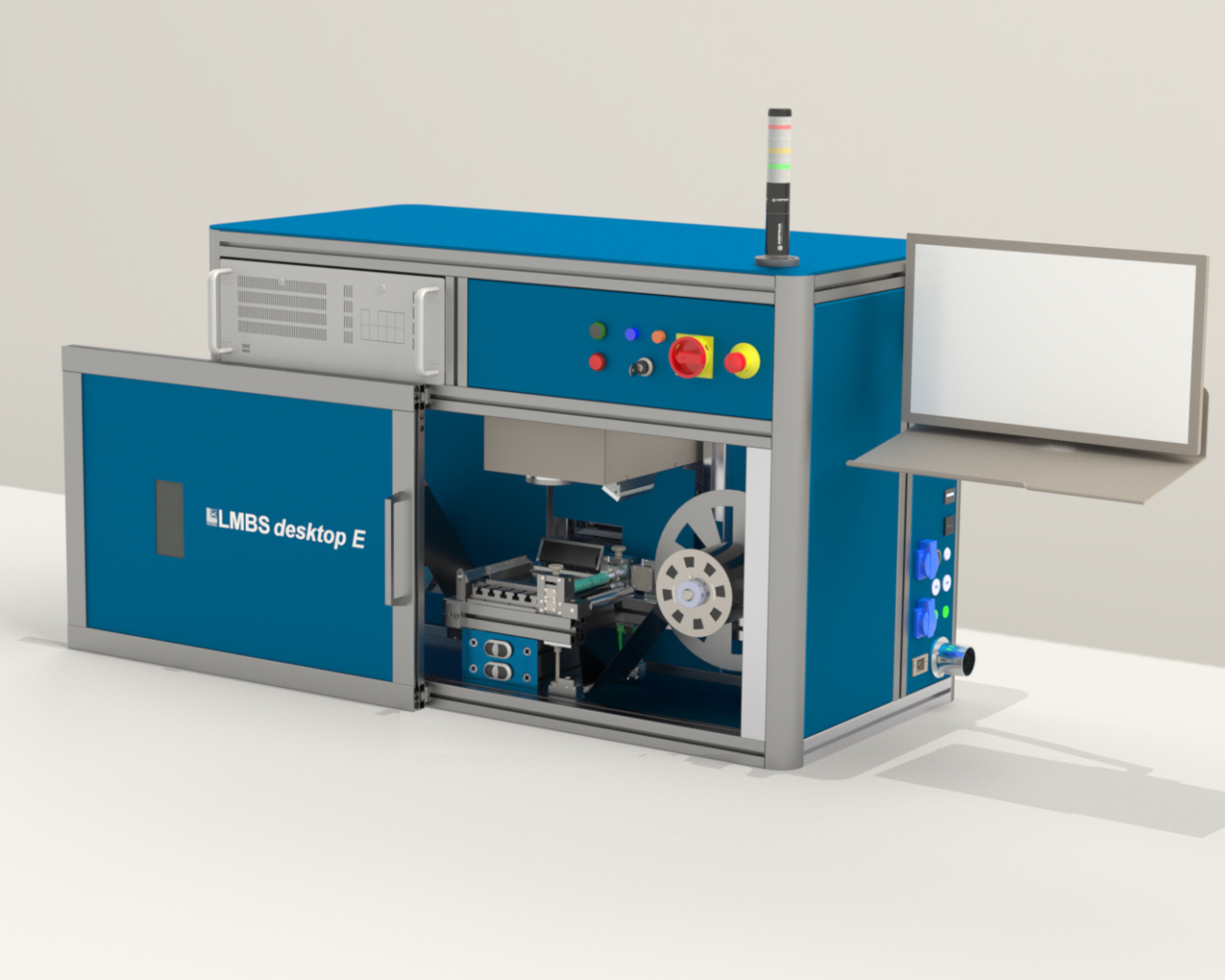

LMBS desktop E

The laser marking system enables the marking of laser script foils. This device is designed in accordance with laser class 1 with all safety precautions.

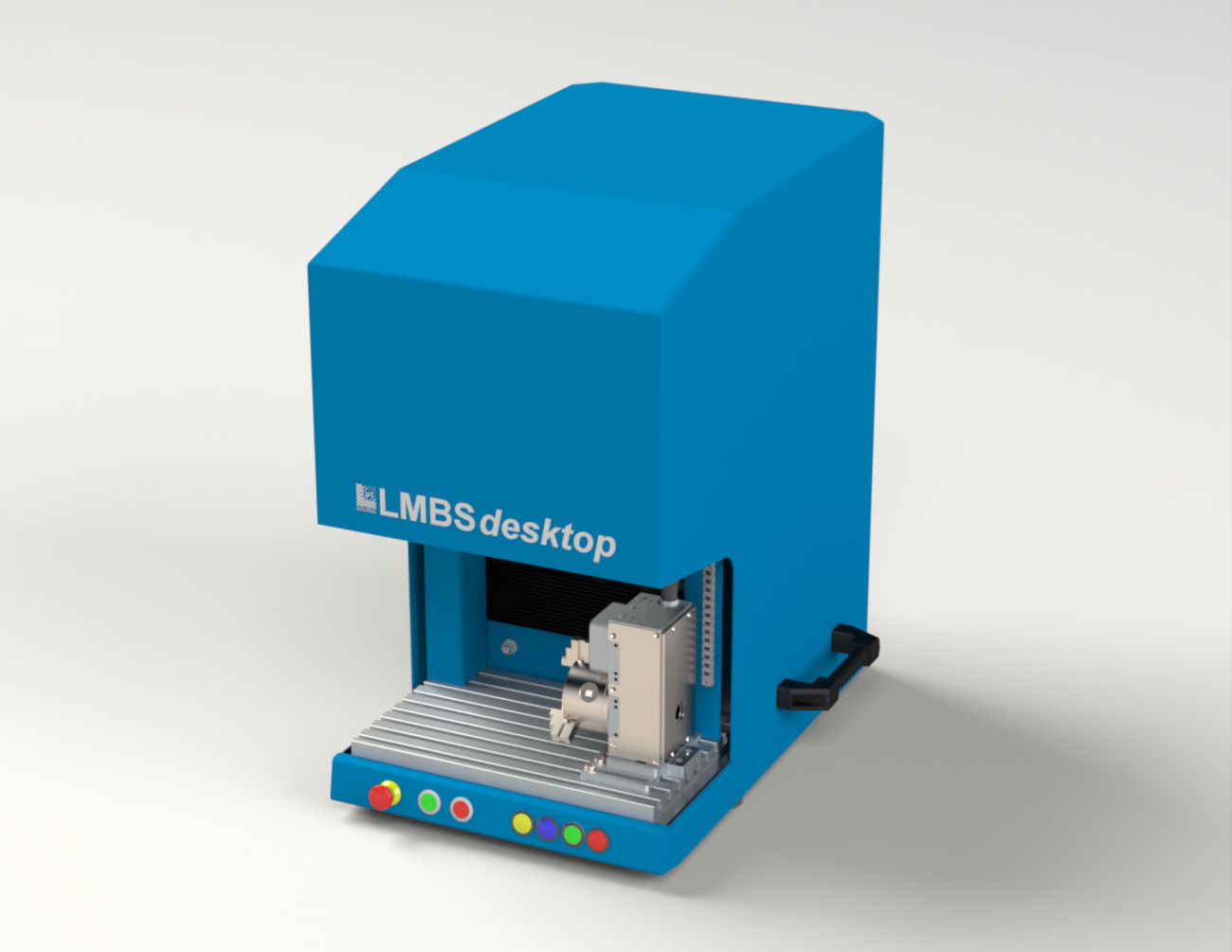

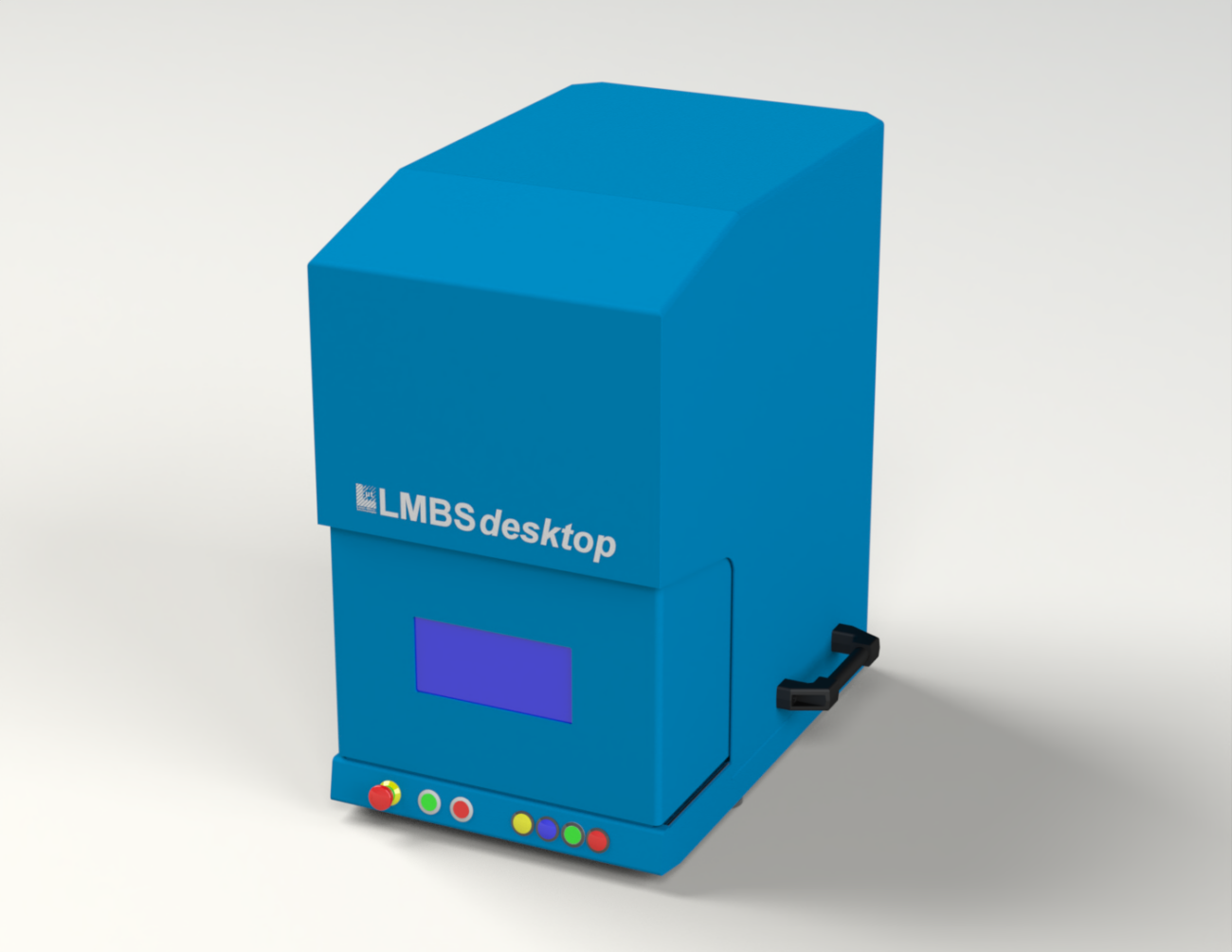

LMBS desktop

These devices are designed in accordance with laser class 1 with all safety features and enable all standard markings.

	Wavelengths UV, GN, IR, FIR
	Laser power up to 60 watts – No cooling required
	Working field up to 175 mm x 175 mm
	200 mm height movement – Automatic detection of component height (focus finder)
	Camera with process field monitoring, live image overlay during programming
	Image recognition with position correction

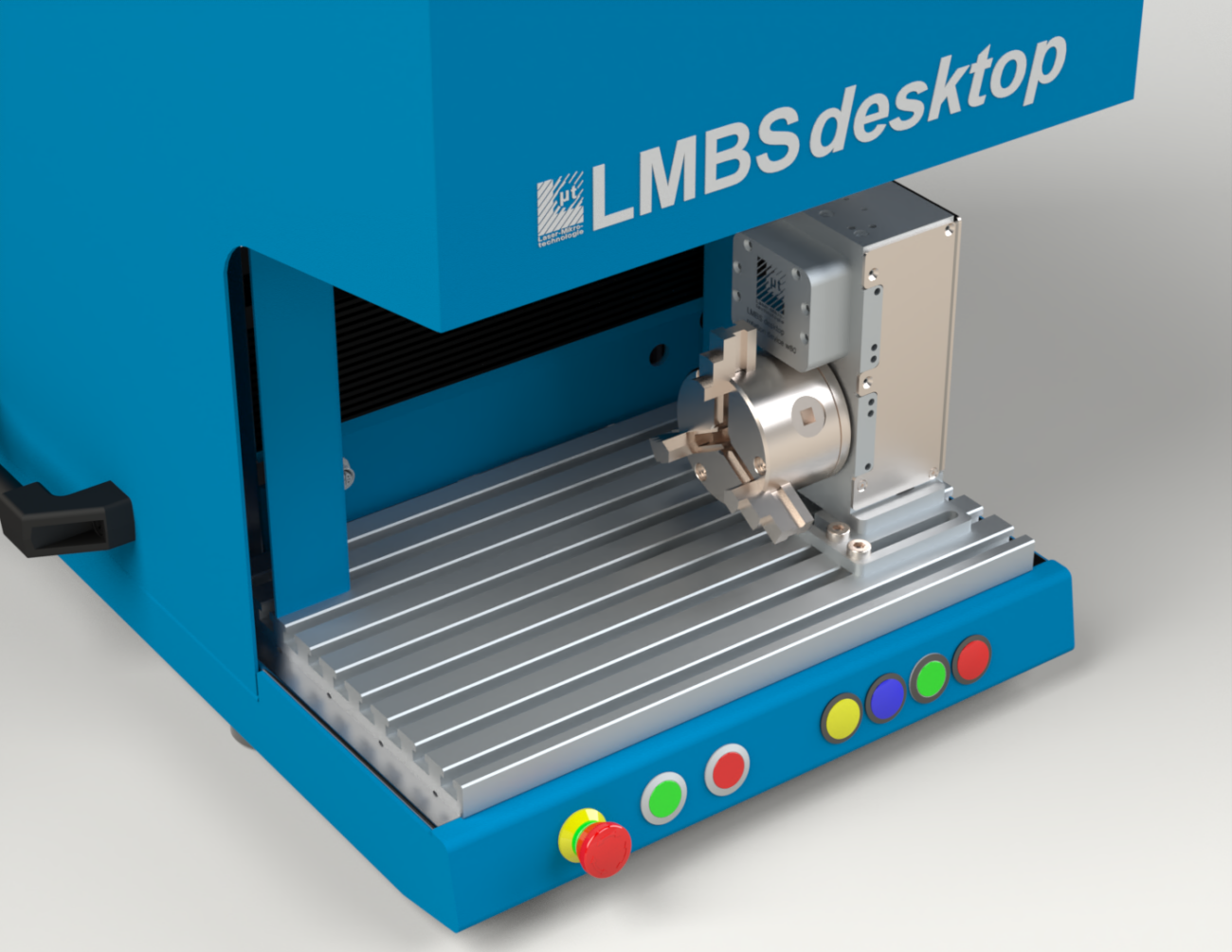

	Tilt and turn device – 80 mm rotating chuck – A-axis without rotation angle limitation – B-axis 90 degree tilt angle
	Possible applications: – Marking – Engraving – Labeling
