Floor-standing units

Floor-standing units

Equipment in this category is designed according to laser class 1 as a stand-alone system with a scanner, an extended working field of up to 700 mm x 500 mm, different wavelengths and camera observation.

Type designations

LMBS UV
Basic equipment for micromachining
UV Wavelength in ultraviolet 355 nm
More options:
GN wavelength in green 532 nm
IR wavelength in infrared 1055 to 1070 nm
FR wavelength in infrared 10600 nm
3W 3 wavelengths; 1064nm, 532nm, 355nm
More options:
LMTS Equipment for cutting
LMSS Equipment for welding

All other identifiers are analogous to those of the LMBS desktop variants.

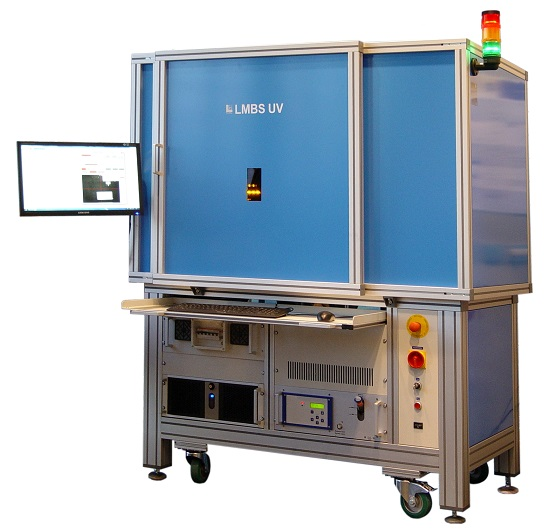

LMBS UV-050-005-x300y200z100-IA

  • UV-laser 335 nm
  • Scannerfield 50 mm x 50 mm
  • Laser power 5 watts
  • Working area 300 mm x 200 mm
  • Height adjustment 100 mm
  • automatic image recognition with position correction
  • Positioning accuracy 1 µm
  • Processing dimensions up to 5 µm

Application

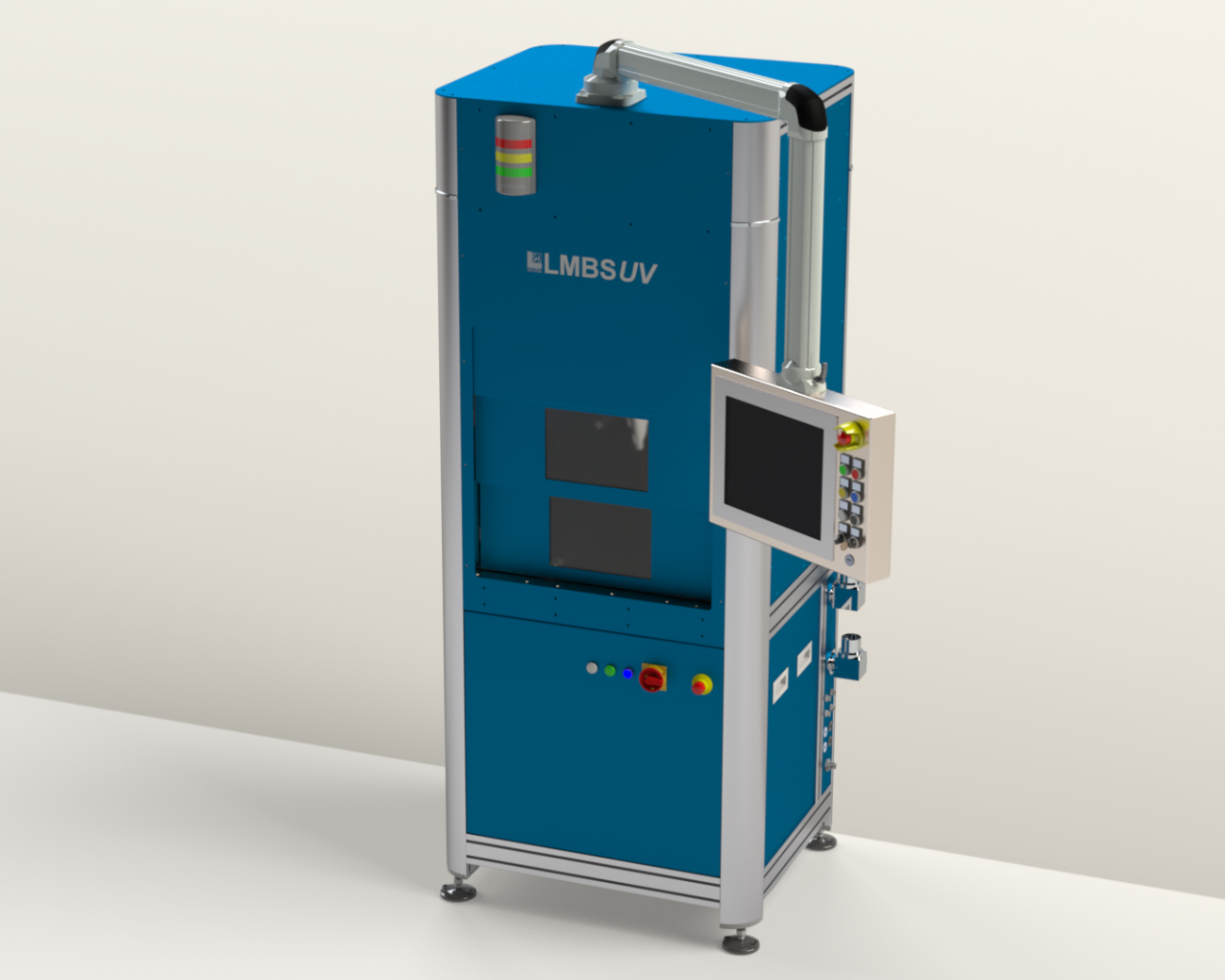

LMBS UV-015-001-xy400z200-IA

  • UV-laser 335 nm
  • Scannerfield 15 mm x 15 mm
  • Laser power 1 watt
  • Working area 400 mm x 400 mm
  • Height adjustment 200 mm
  • automatic image recognition with position correction
  • Positioning accuracy 1 µm
  • Processing dimensions up to 5 µm

Application

LMTS UV-040-020-xyz100-IA

  • UV-laser 335 nm
  • Scannerfield 40 mm x 40 mm
  • Laser power 20 watts
  • Working area 100 mm x 100 mm
  • Height adjustment 100 mm
  • automatic image recognition with position correction
  • Positioning accuracy 10 µm
  • Processing dimensions up to 15 µm

Application
Application

LMBS IR-120-020-xy400z200-IA

  • IR-Fiber laser
  • Scannerfield 115 mm x 115 mm
  • Laser power 20 watts
  • Working area 400 mm x 400 mm
  • Height adjustment 200 mm
  • automatic image recognition with position correction
  • Positioning accuracy 10 µm
  • Processing dimensions up to 35 µm

Application

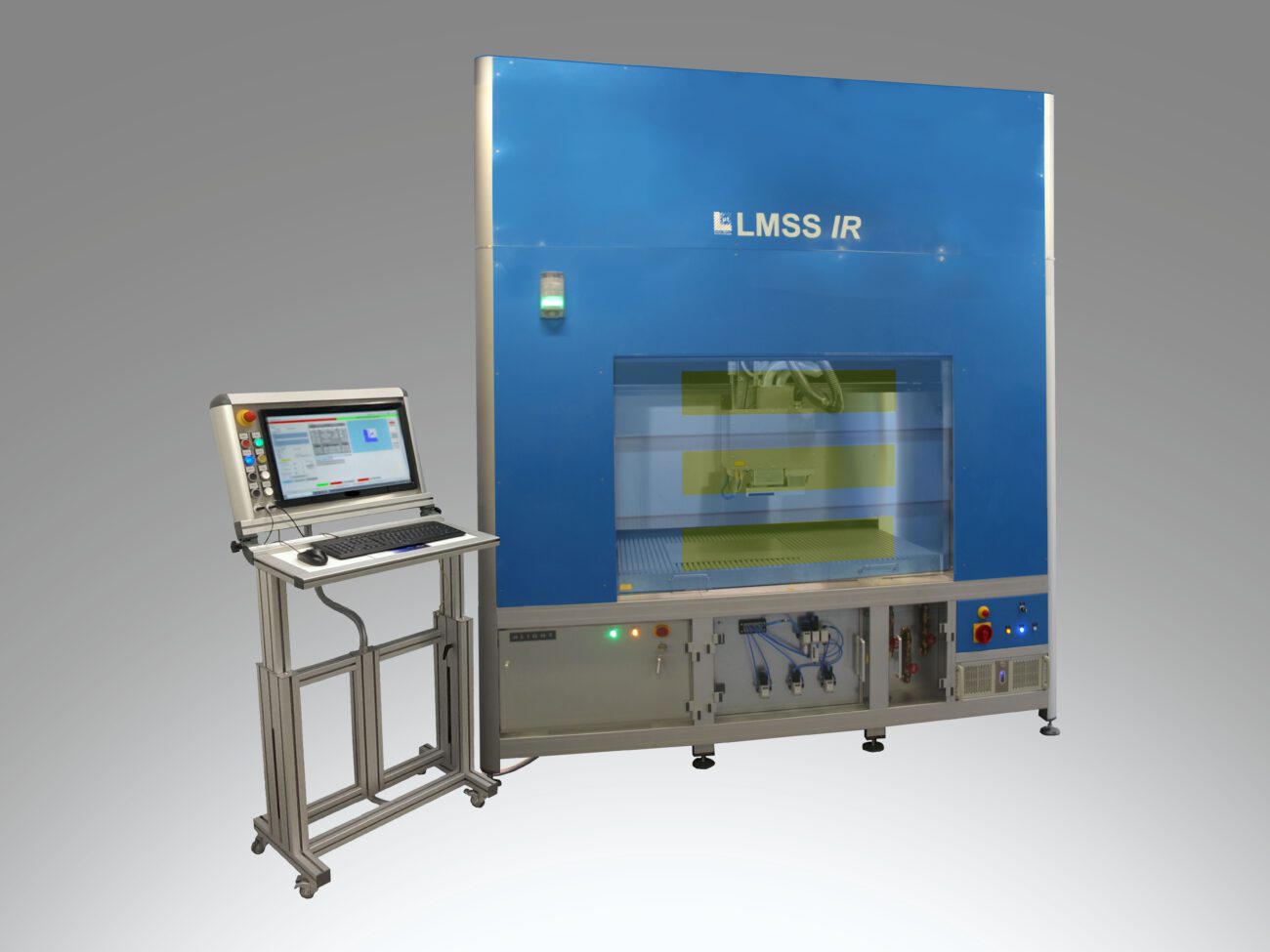

LMSS IR-0-100-xyz200W-C

  • Lamp pumped pulsed laser
  • Laser power 100 watts
  • Fixed welding look
  • Focus variation from 0.3 to 2 mm
  • Working area 200 mm x 200 mm
  • Height adjustment 200 mm
  • Connection for rotary axis
  • camera observation
  • Control via multiCAM

Application
